Reliable ,eco-friendly, and cost-effective hot water for your home. The Greentech 200-Liter Solar Water Heating System utilizes high-efficiency thermal absorption and double-jacketed insulation to deliver consistent hot water year-round. Ideal for medium to large households.
Key Features & Benefits
- High-Thermal Absorption: Built with a highly selective Almeco-Tinox Titanium-coated aluminum absorber and laser-welded collectors to maximize heat retention even on cloudy days.
- Durable Double-Enameled Tank: Features high-tech industrial enameling for inner tank protection against corrosion and scaling.
- Superior Thermal Insulation: Insulated with 50mm injected polyurethane to prevent heat loss overnight.
- Long-Lasting Frame & Build: Includes a heavy-duty galvanized steel support frame designed to withstand harsh outdoor environments.
- Sacrificial Magnesium Anode: Extends tank life by actively resisting mineral buildup and corrosion.
- Safety Guaranteed: Fitted with a high-performance temperature/pressure relief safety valve system (up to 10-bar max tank operating pressure).
Technical Specifications
System & Capacity
- Total Capacity: 198 – 200 Liters / day
- Product Code: S200A Model
- Certifications: Solar Keymark Certified, AENOR, CENER
- Warranty: 5-Year Limited Warranty
Storage Tank Specs
- Tank Dimensions:1375 by 587mm
- Inner Protection: Double Enamel Layer
- Tank Body Thickness:2.5 mm
- Insulation: 50 mm Injected Polyurethane (42 kg/m³)
- Max Tank Pressure: 10 bar
- Max Temperature: Up to 95°C– 115°C
Solar Collector Specs
- Collector Area (Gross / Aperture): 2.42m² / 2.24m²
- Absorber Material: Almeco-Tinox Highly Selective Aluminum
- Glass Material: Normal Low-Iron Tempered Solar Glass
- Collector Insulation: High-density Glass Wool (15 mm)
- Welding: Precision Laser WeldedWhat’s Included in the Box?
- 1x 200L High-Thermosyphon Storage Tank
- 1x High-Efficiency Solar Collector Plate
- 1x Heavy-Duty Galvanized Steel Mounting Frame

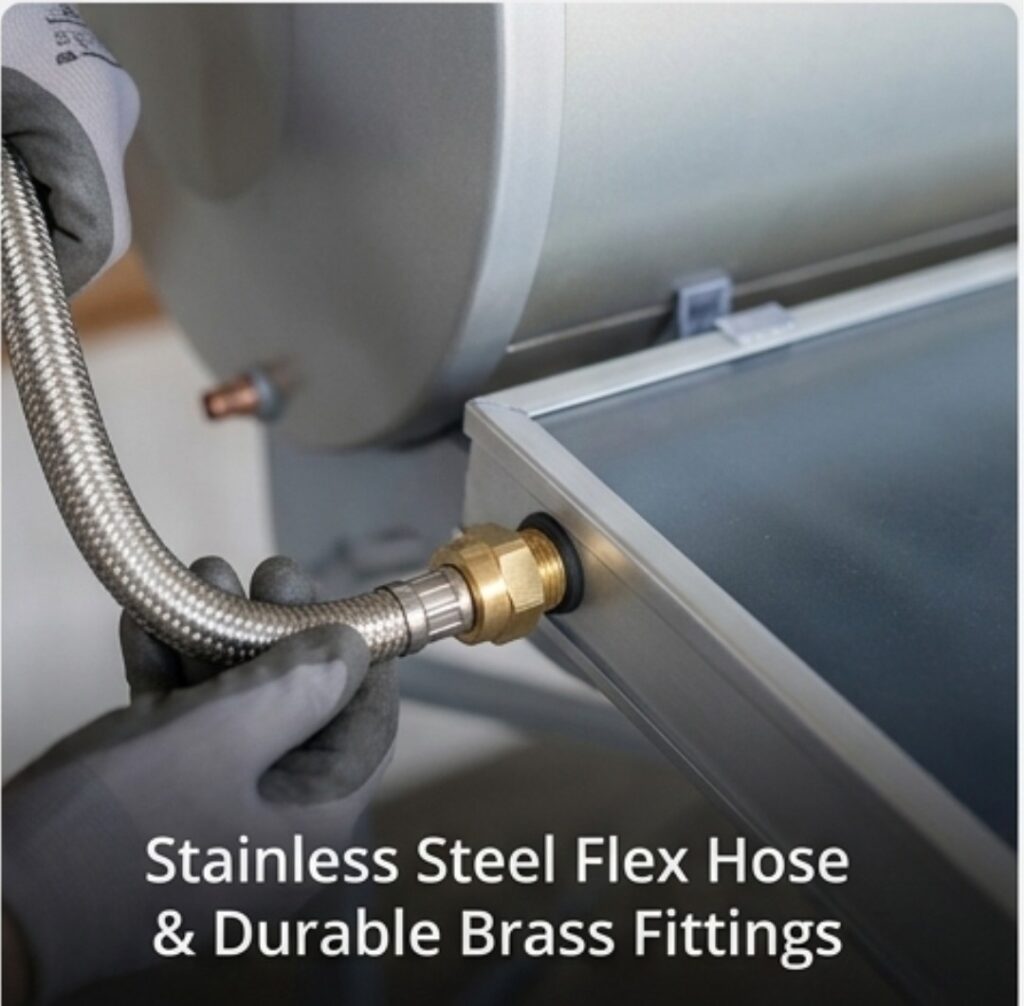

- Complete Accessories & Connection Kit (Fittings, temperature / pressure valve ,connector,flexible pipe)iable, eco-
